Sol / Pump

This function is used to spray disinfectant.

Disinfectant can be sprayed only when both functions are activated.

Below, the method of dispensing the disinfectant solution is explained in order.

Sol On

  • Activate the solenoid valve output in the message box

  • Pump LED turns Orange

  • Output ‘true’ to terminal

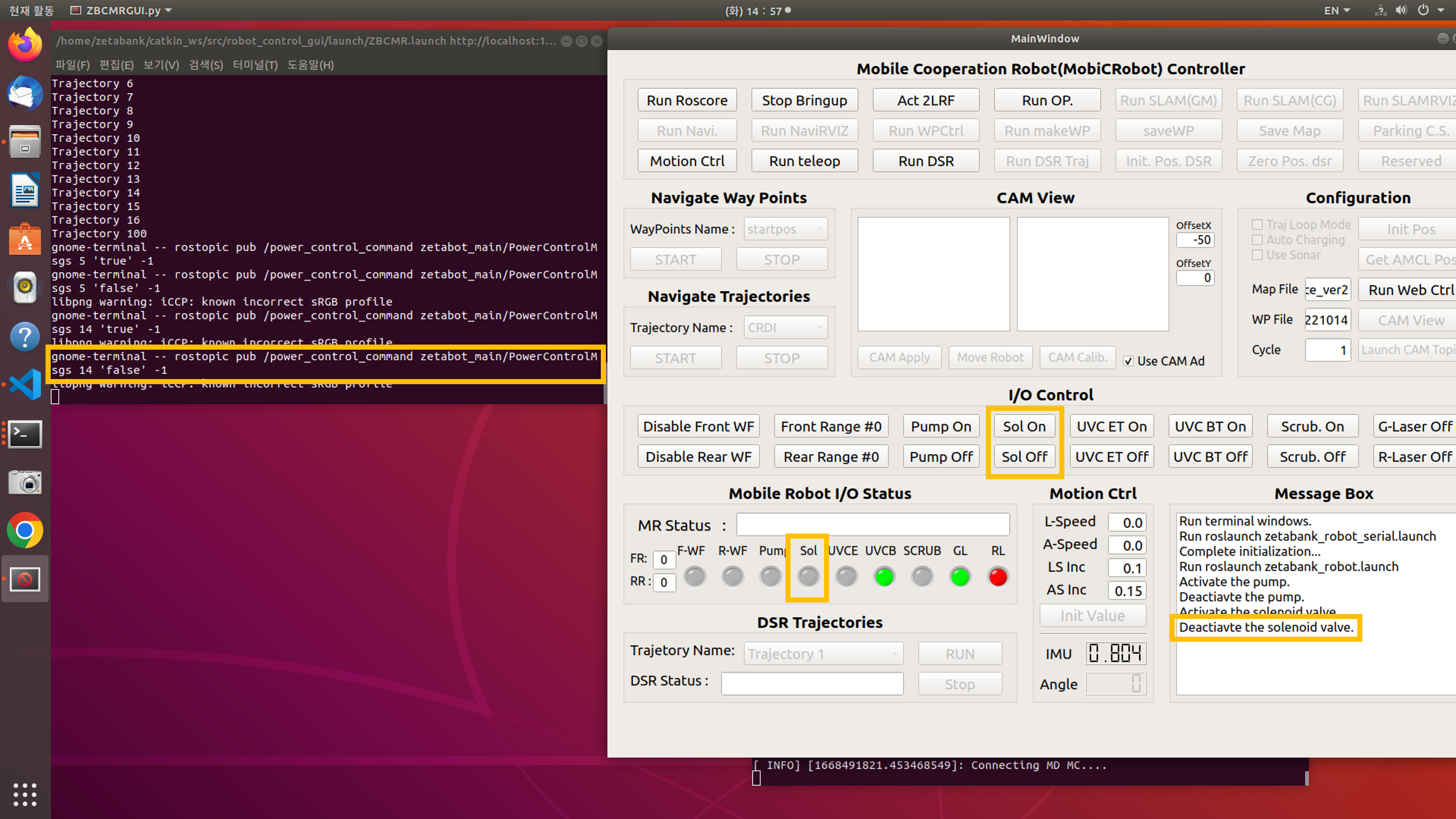

Sol Off

  • Deactivate the solenoid valve output in the message box

  • Pump LED turns off

  • Output ‘false’ to terminal

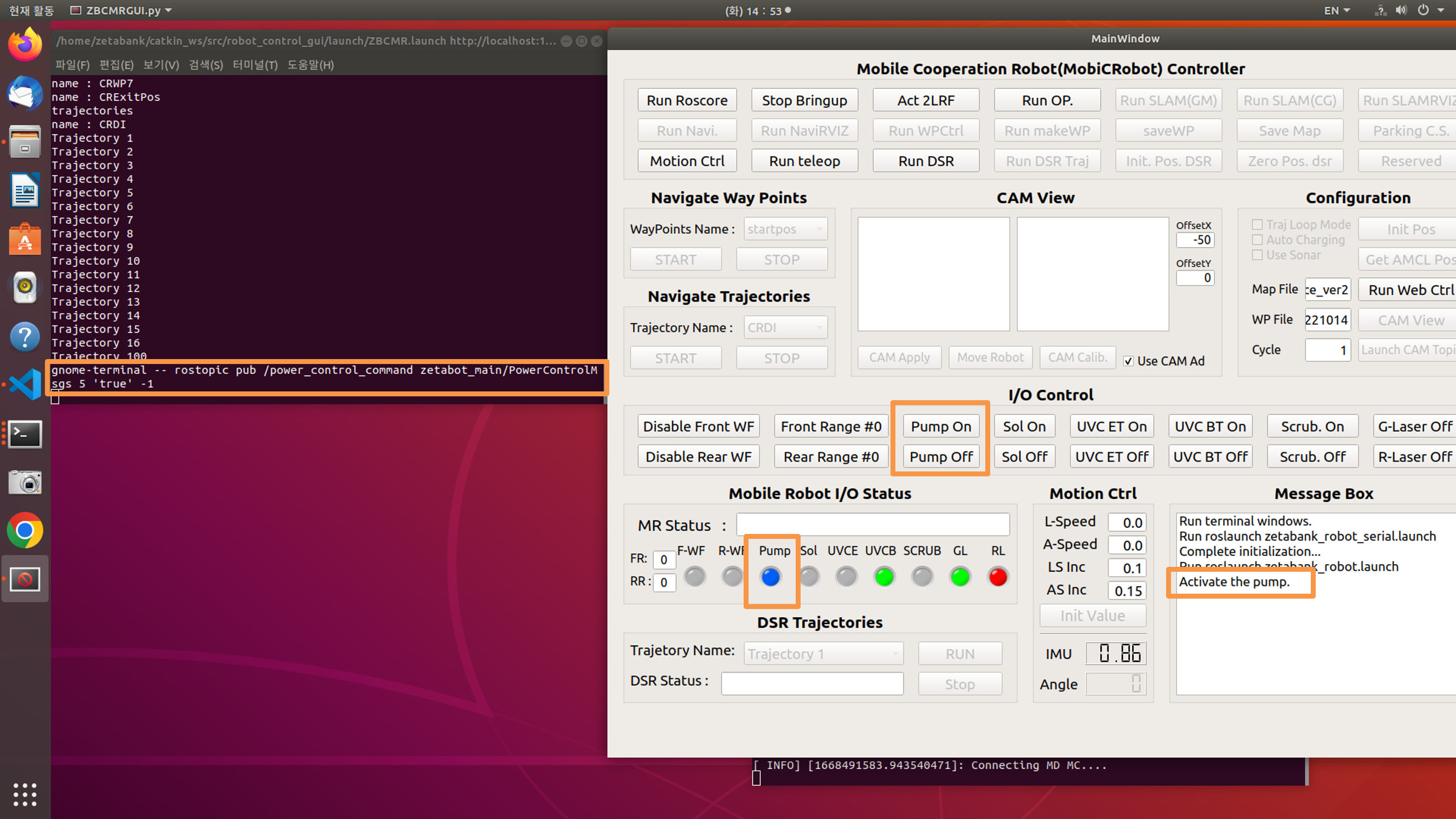

Pump On

  • Activate the pump output in the message box

  • Pump LED turns blue

  • Output ‘true’ to terminal


Pump Off

  • Deactivate the pump output in the message box

  • Pump LED turns off

  • Output ‘false’ to terminal
